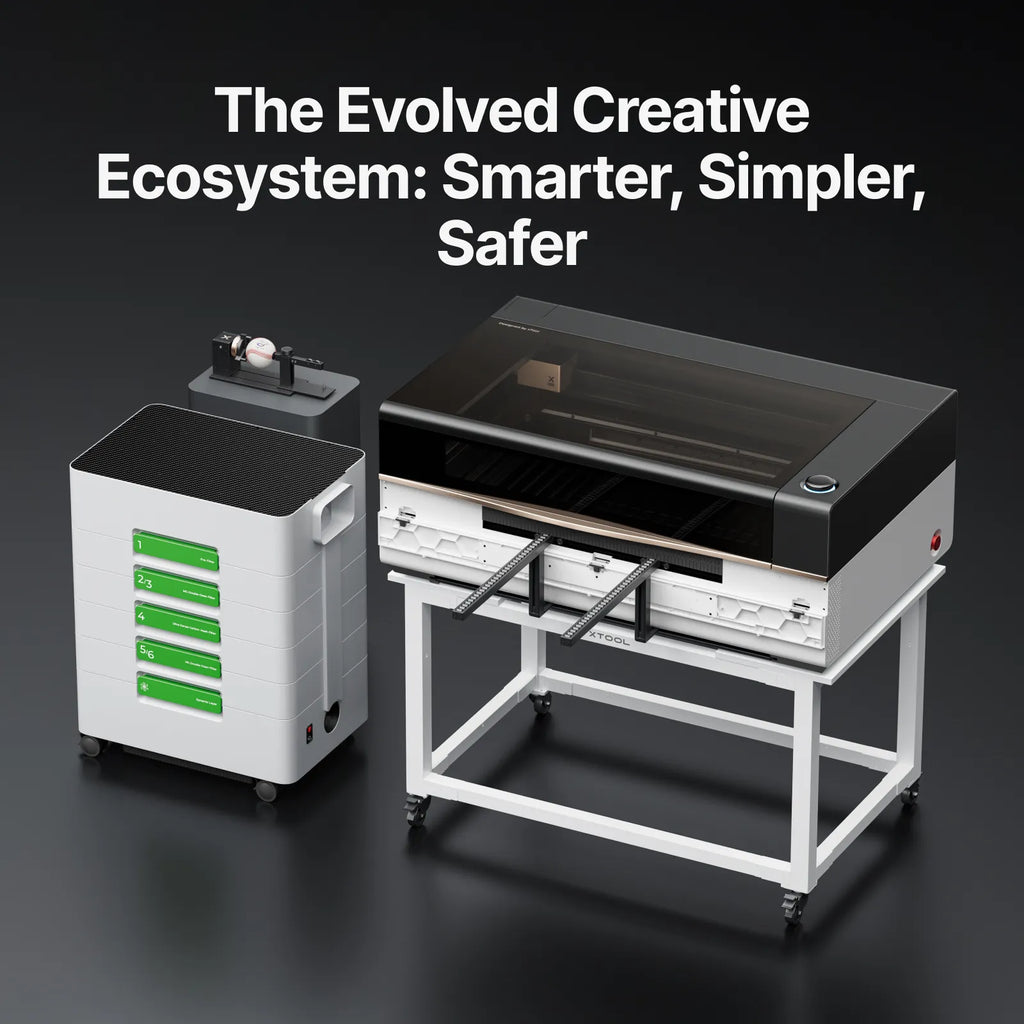

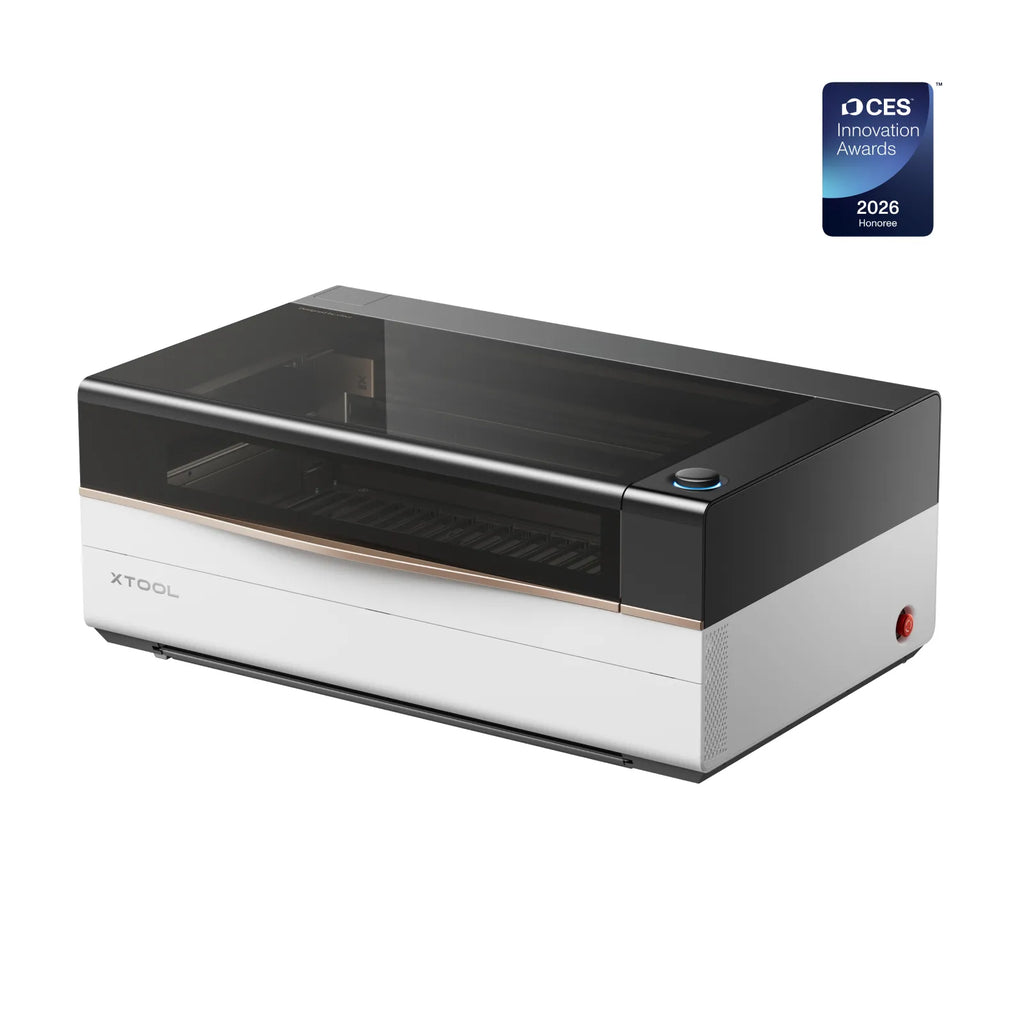

xTool P3 Laser Cutter & Engraving Machine
2
sold in last
8
hours
30,583.90 AED

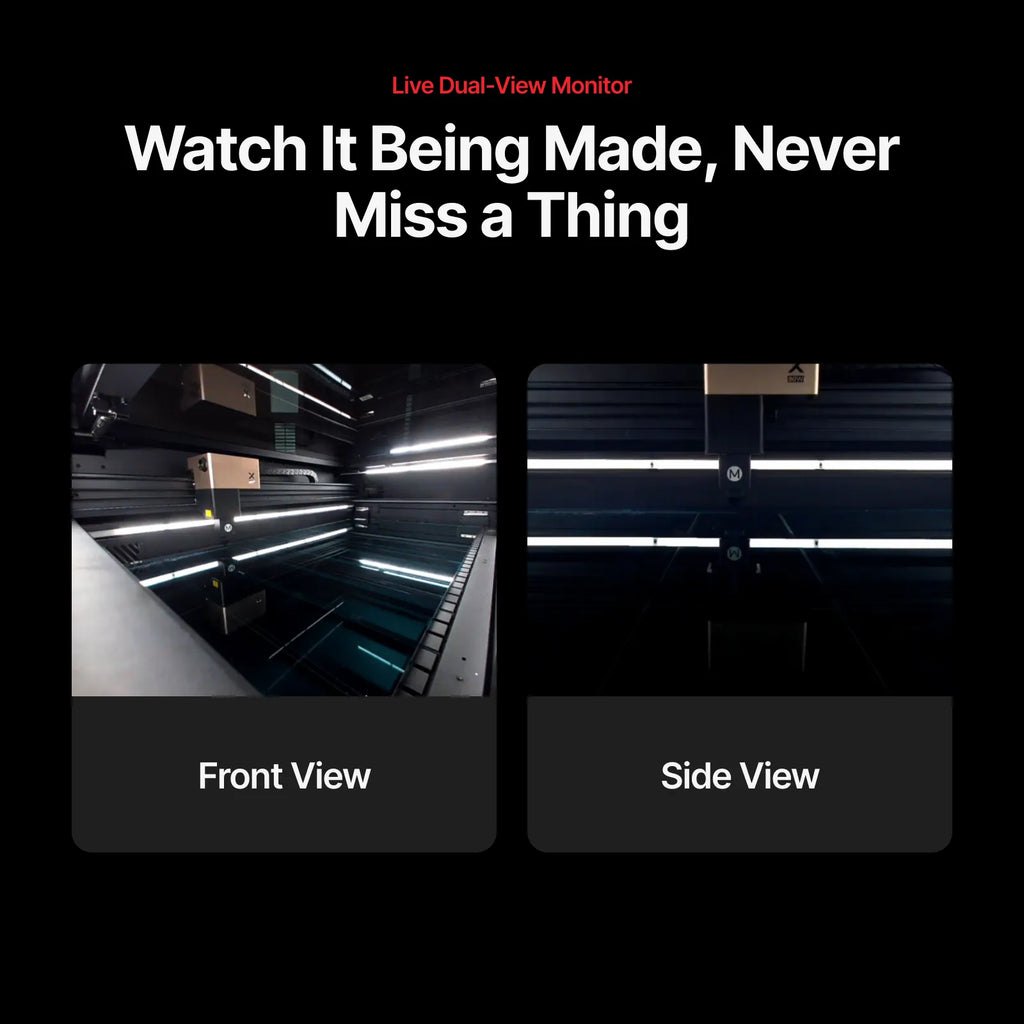

- 4-Camera Vision: For pinpoint material positioning and complete safety monitoring.
- 36" × 18" Working Area: Our largest workspace yet—2.3x larger than the P2S.
- Exclusive ACS™ Smart Workflow: Auto-Positioning, Autofocus, Auto LiDAR Ranging, and an Auto-Lifting Base.
- Smart Accessories: Enables 3D previews (RA3) & full-scale previews (Conveyor).

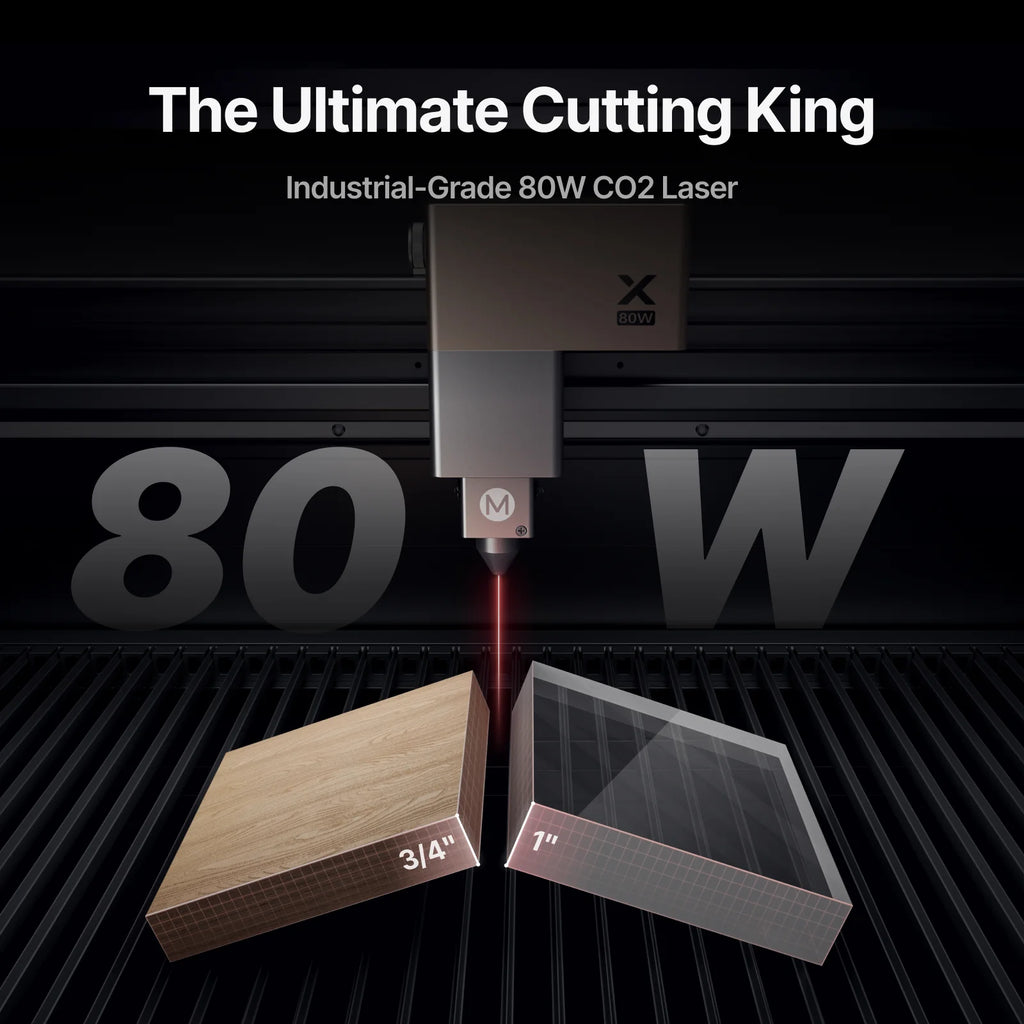

- 80W Power & 1200mm/s Speed: Double the processing efficiency of the P2S.
In the Box
Specifications
Processing Capacity
| Specification | xTool P3 | xTool P2S |
|---|---|---|
| Laser Type | 80W CO₂ Laser + 5W IR Laser (Optional) | 55W CO₂ Laser |
| Processing Mode | Laser Cutting Laser Engraving |
Laser Cutting Laser Engraving |
| Supported Materials | Laser Cuttable: Wood, Acrylic, Fabric, Leather Laser Engravable: Metal, Glass, Bamboo, Ceramic & more |
Laser Cuttable: Wood, Acrylic, Fabric, Leather Laser Engravable: Metal, Glass, Bamboo, Ceramic 300+ Compatible Materials |
| Working Area | 36" × 18" (915 × 458 mm) | 23.6" × 12" (600 × 305 mm) |
| Max. Working Speed | 47.2 ips (1200 mm/s) X-axis Acceleration: 19600 mm/s² |
23.6 ips (600 mm/s) X-axis Acceleration: 6400 mm/s² |
| Max Cutting (Basswood) | 20 mm in one pass | 18 mm in one pass |
| Max Cutting (Acrylic) | 25 mm in one pass | 20 mm in one pass |
| Max Processing Height | 220 mm | With riser base: 215 mm With tray: 64 mm Without tray: 71 mm |
| Rotary Engraving Diameter | 0 – 200 mm | With riser base: 0 – 180 mm Without riser base: 3 – 50 mm |
Easy Operation
| Feature | xTool P3 | xTool P2S |
|---|---|---|
| Easy Operation | Yes | Yes |
| ACS™ (Automated Creation System™) | Yes | — |
| Built-in Camera | 16 MP SkyView Panoramic Camera Close-range Camera Side Camera × 2 |
16 MP Panoramic Camera Close-range Camera |
| Positioning Method | Dual-Camera Positioning | Dual-Camera Positioning |
| Focus Mode | Autofocus | Autofocus |
| Ranging System | LiDAR Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview | Smart Camera Preview |
Accuracy & Precision
| Specification | xTool P3 | xTool P2S |
|---|---|---|
| Laser Spot Size | S Focal Lens: 0.0055" × 0.0063" (0.14 × 0.16 mm) – Optional M Focal Lens: 0.0059" × 0.0071" (0.15 × 0.18 mm) – Standard L Focal Lens: 0.0071" × 0.0079" (0.18 × 0.20 mm) – Optional |
0.0059" × 0.0079" (0.15 × 0.20 mm) |
| Positioning Precision | 0.0079" (0.2 mm), Camera | 0.3 mm, Camera |
| Motion Accuracy | 0.00039" (0.01 mm) | 0.00059" (0.015 mm) |
Smart Software
| Supported Software | xTool Studio | xTool Creative Space / LightBurn |
|---|---|---|
| Operating System | Windows, macOS | Android, iOS, iPadOS, Windows, macOS |
| Connection Method | USB / Wi-Fi | USB / Wi-Fi |
| Supported Files | SVG, DXF, JPG, PNG, BMP, TIF | SVG, DXF, JPG, PNG, BMP, TIF |
General Information
| Safety Certification | Class 1 Laser Safety | Class 4 Laser Safety |
|---|---|---|
| Product Dimensions | 1250 × 780 × 496 mm | 1000 × 639 × 268 mm |
| Product Weight | 105 kg | 45 kg |
| Max Input Power | 1400 W | 700 W |
| Power Input Voltage | 100–240 V, 50/60 Hz | 100–120 V, 50/60 Hz |
